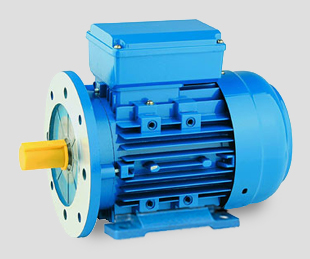

MC SINGLE PHASE ALUMINIUM HOUSING MOTOR

  • MC SINGLE PHASE ALUMINIUM HOUSING MOTOR

Description

MC Series Aluminium housing single-phase capacitor start asynchronous motors, with latest design in entirely, are made of quality materials and meet the relative rules of IEC standard. MC motors have good performance, safe and reliable operation, nice appearance, and can be maintained very conveniently, while with low noise, little vibration, light weight and simple construction.
This series motors can be used on air compressor, pumps, refrigeration, medical apparatus instruments and many other machines that need full-load start.

Operating Condiyions:
Ambient temperature: -15℃≤θ≤40℃
Above sea level: not exceed 1000m
Rated voltage: ±5%
  • Parameter
  • Type Output Current
    (A)
    Power
    Eff
    (%)
    Speed
    (r/min)
    Tstart/Tn Ist/In Tmax/Tn
    kW HP
    MC711-2 0.18 0.24 1.89 0.72 60 2750 3 6.5 1.8
    MC712-2 0.25 0.33 2.4 0.74 64 2770 3 6.5 1.8
    MC801-2 0.37 0.5 3.36 0.77 65 2800 2.8 6.5 1.8
    MC802-2 0.55 0.75 4.65 0.79 68 2810 2.8 6.5 1.8
    MC90S-2 0.75 1 6.09 0.8 70 2820 2.5 6.5 1.8
    MC90L-2 1.1 1.5 8.68 0.8 72 2820 2.5 6.5 1.8
    MC100L1-2 1.5 2 11.4 0.81 74 2830 2.5 7 1.8
    MC100L2-2 2.2 3 16.5 0.81 75 2830 2.2 7 1.8
    MC112M-2 3 4 21.9 0.82 76 2840 2.2 7 1.8
    MC711-4 0.12 0.16 1.88 0.58 50 1350 3 6 1.8
    MC712-4 0.18 0.24 2.49 0.62 53 1370 3 6 1.8
    MC801-4 0.25 0.33 3.11 0.63 58 1400 2.8 6 1.8
    MC802-4 0.37 0.5 4.24 0.64 62 1410 2.8 6 1.8
    MC90S-4 0.55 0.75 5.49 0.69 66 1420 2.5 6 1.8
    MC90L-4 0.75 1 6.87 0.73 68 1420 2.5 6 1.8
    MC100L1-4 1.1 1.5 9.52 0.74 71 1430 2.5 6.5 1.8
    MC100L2-4 1.5 2 12.5 0.75 73 1430 2.5 6.5 1.8
    MC112M-4 2.2 3 17.8 0.76 74 1440 2.2 6.5 1.8



    Frame
    No

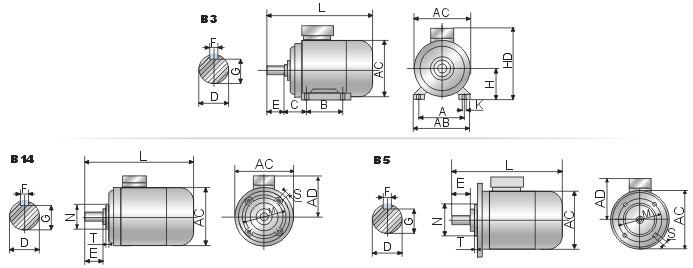

    Installation Size Installation Size B5 Installation Size B14 Overall Dimension(mm)
    A B C D E F G H K M N P S T M N P S T AB AC AD HD L
    56 90 71 36 9 20 3 7.2 56 6 100 80 120 8.5 3 65 50 80 M5 2 112 108 93 149 192
    63 100 80 40 11 23 4 8.5 63 7 115 95 140 10 3 75 60 90 M5 2.5 120 120 97 160 211
    71 112 90 45 14 30 5 11 71 7 130 110 160 10 3.5 85 70 105 M6 2.5 135 135 107 178 246
    80 125 100 50 19 40 6 16 80 10 165 130 200 12 3.5 100 80 120 M6 3 155 155 141 221 284
    90S 140 100 56 24 50 8 20 90 10 165 130 200 12 3.5 115 95 140 M8 3 175 175 160 250 314
    90L 140 125 56 24 50 8 20 90 10 165 130 200 12 3.5 115 95 140 M8 3 175 175 160 250 339
    100L 160 140 63 28 60 8 24 100 12 215 180 250 15 4 130 110 160 M8 3.5 200 195 160 260 412
    112M 190 140 70 28 60 8 24 112 12 215 180 250 15 4 130 110 160 M8 3.5 226 220 166 278 421
